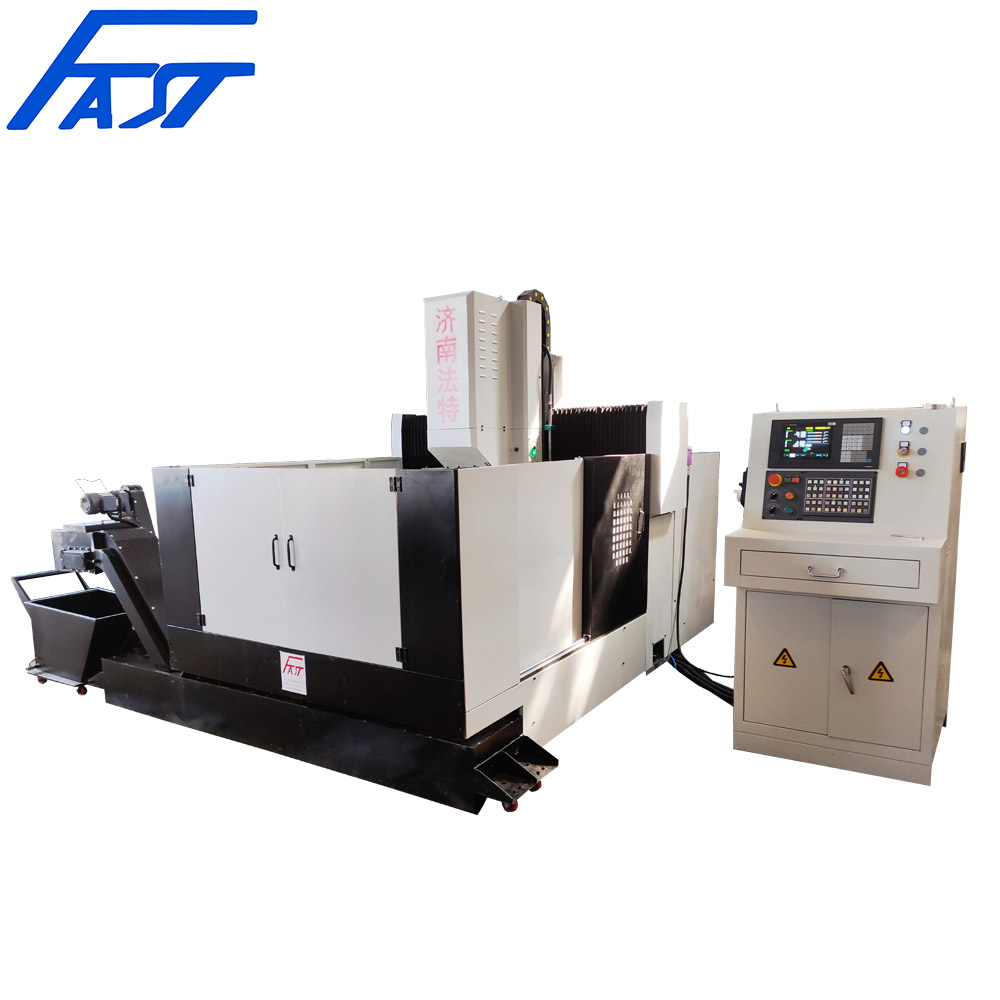

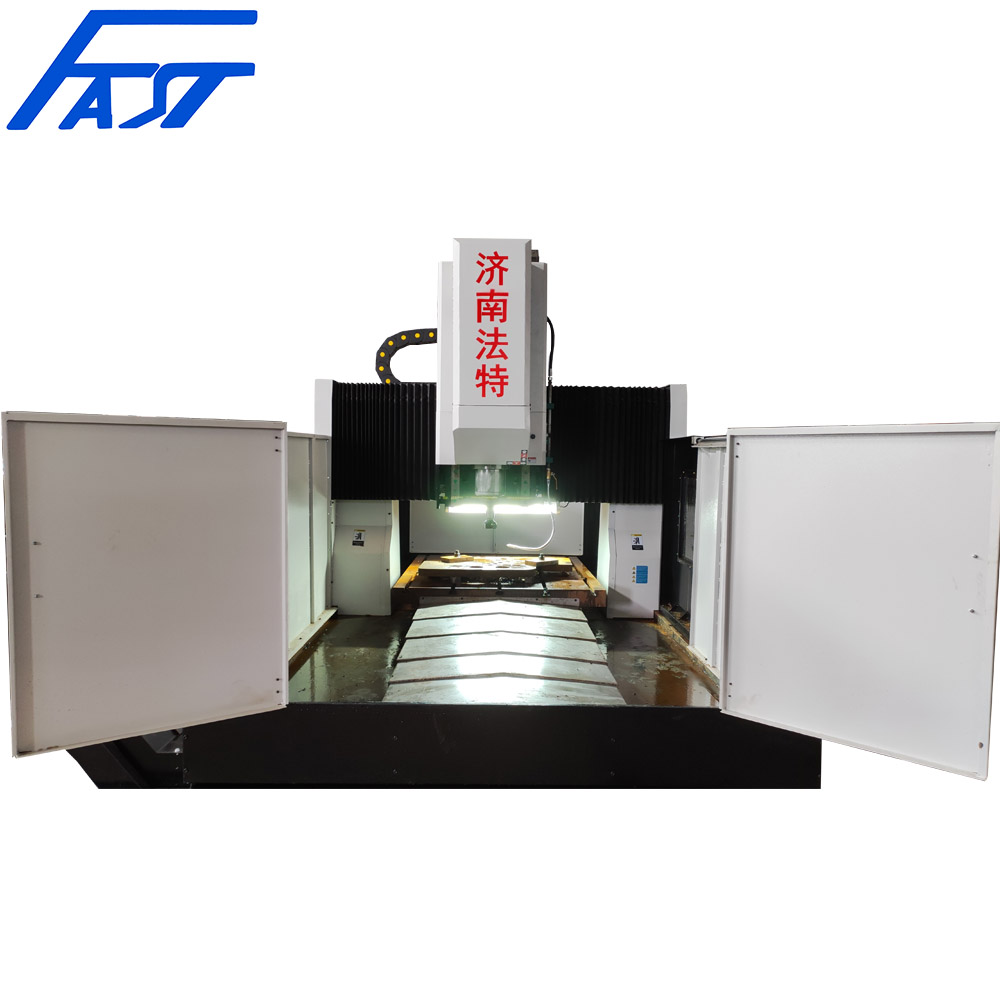

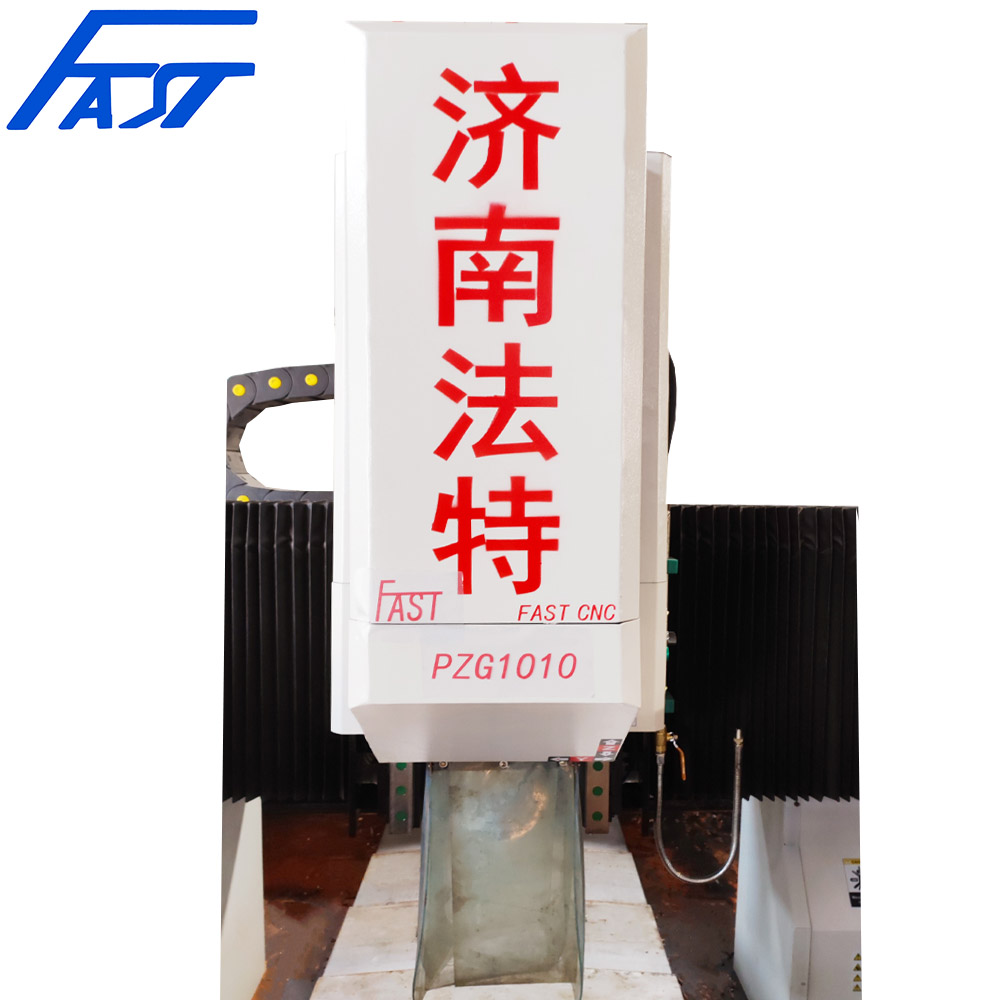

PZG1010-BT50 Factory Sale 1000*1000mm CNC Flange Drilling Milling Machine For Bolier Flange Plate
APPLICATION

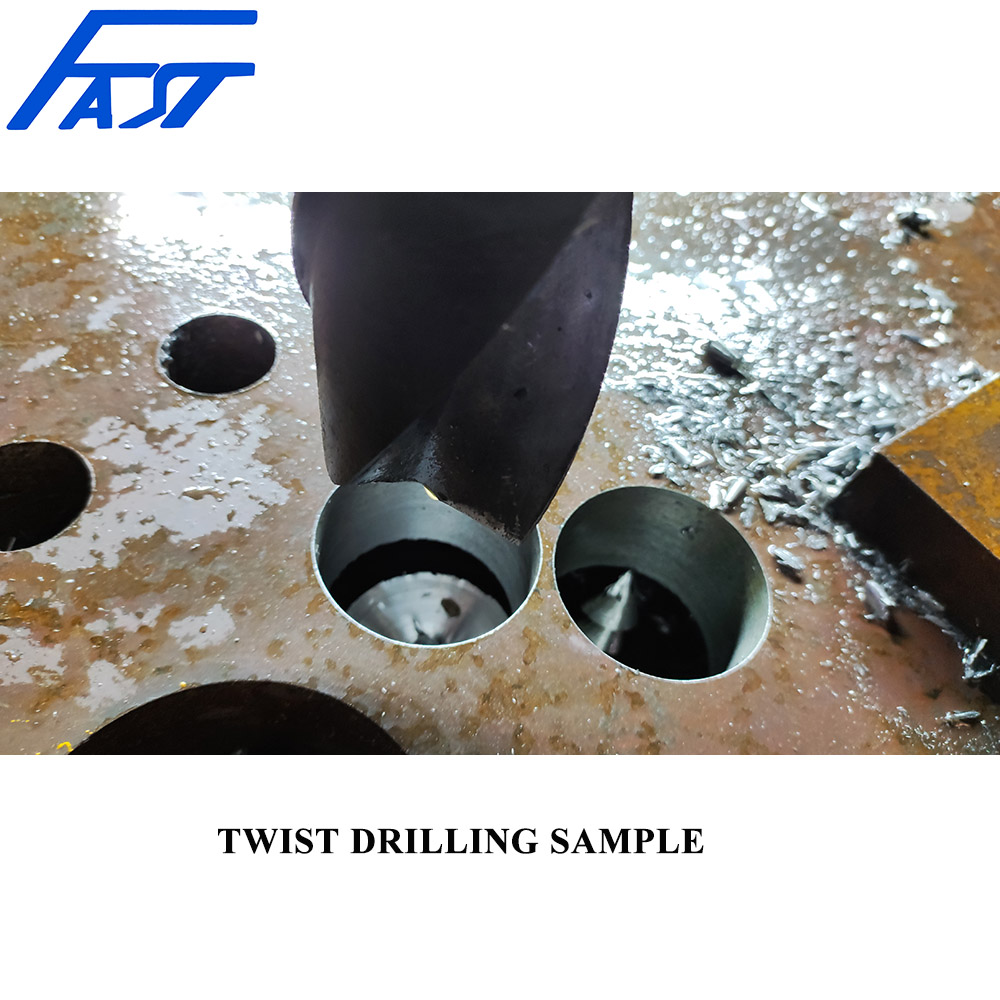

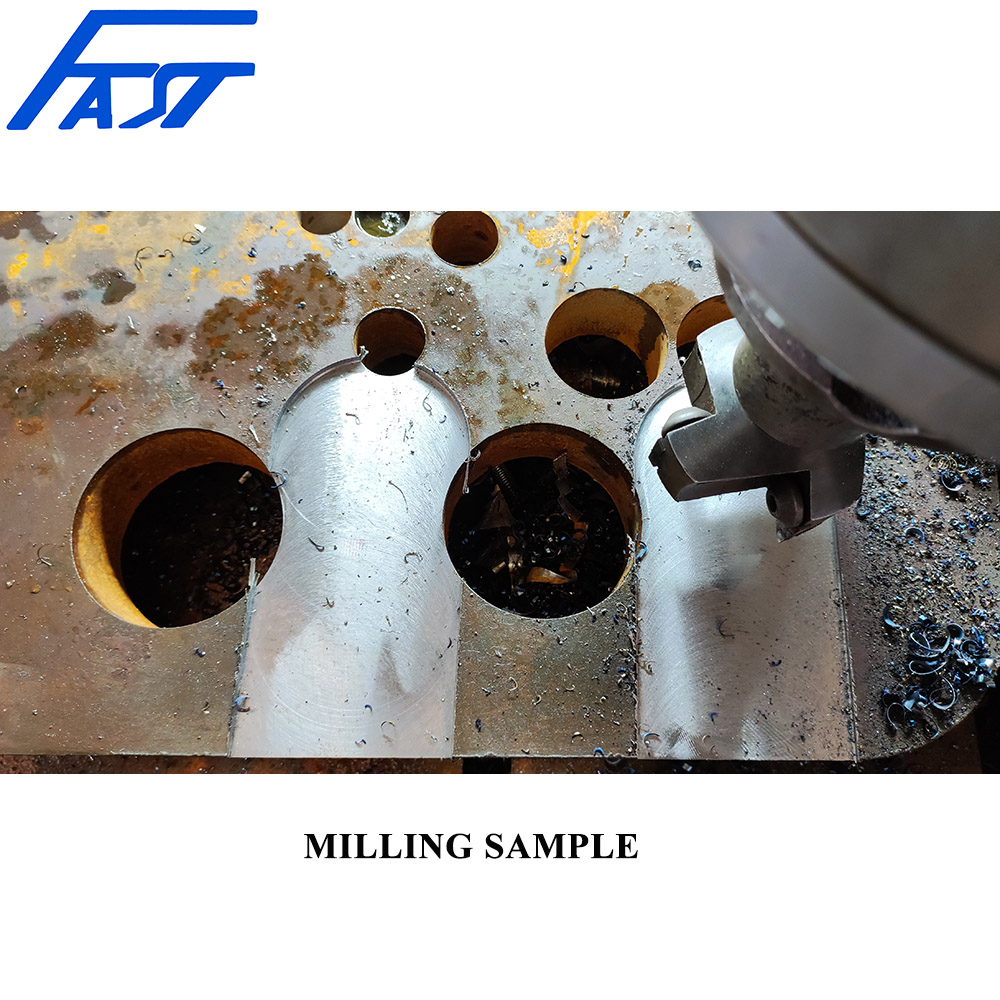

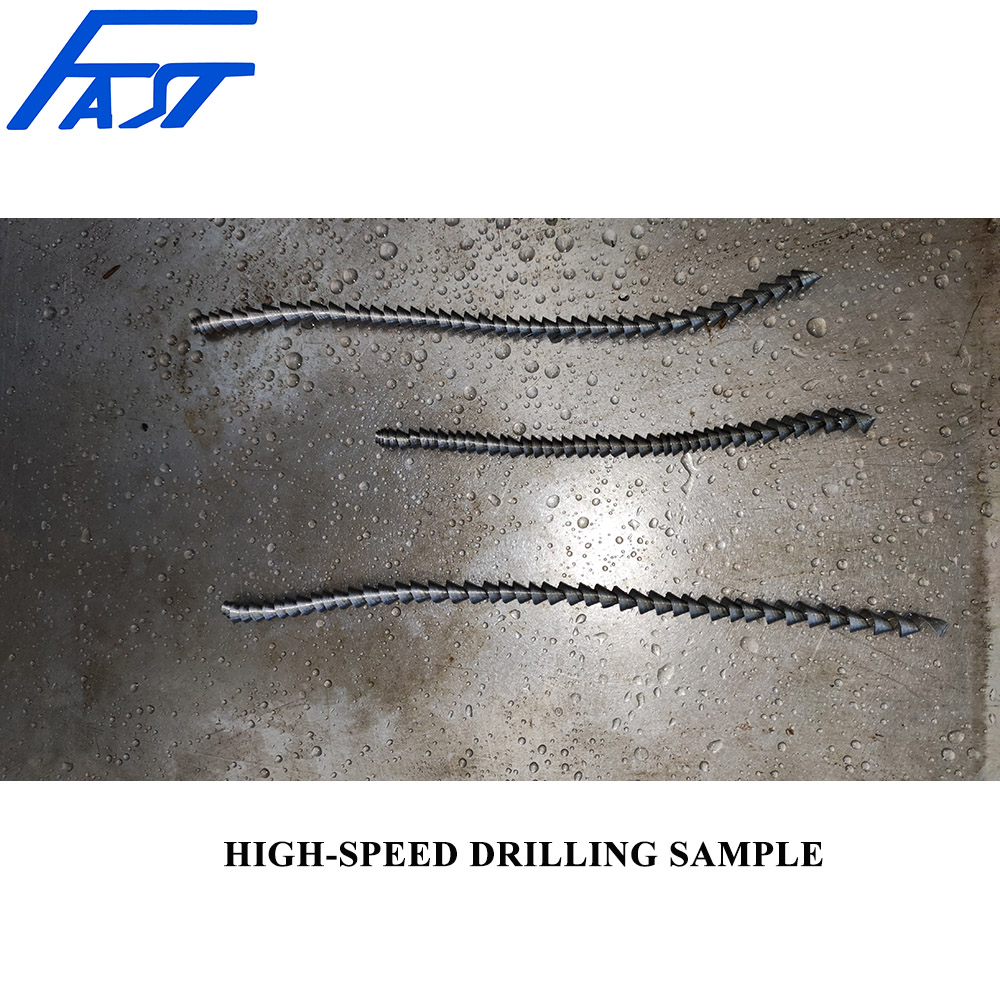

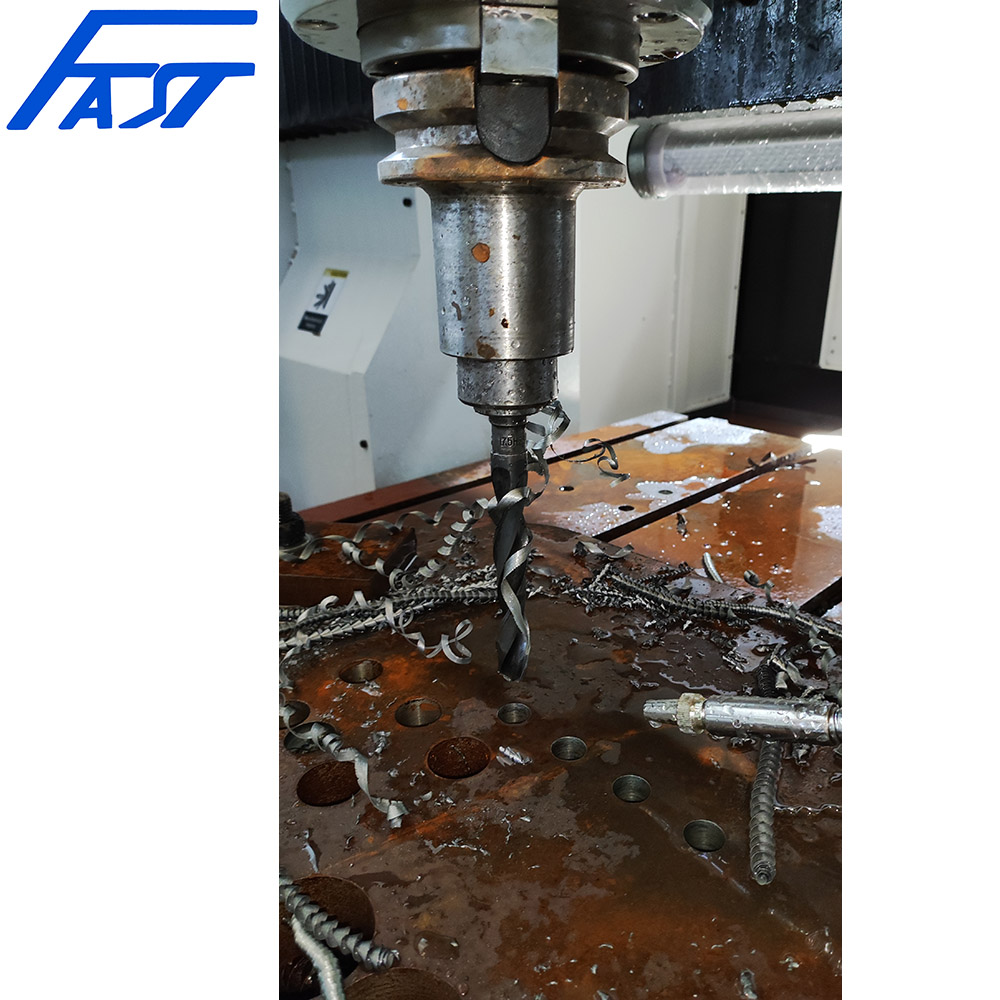

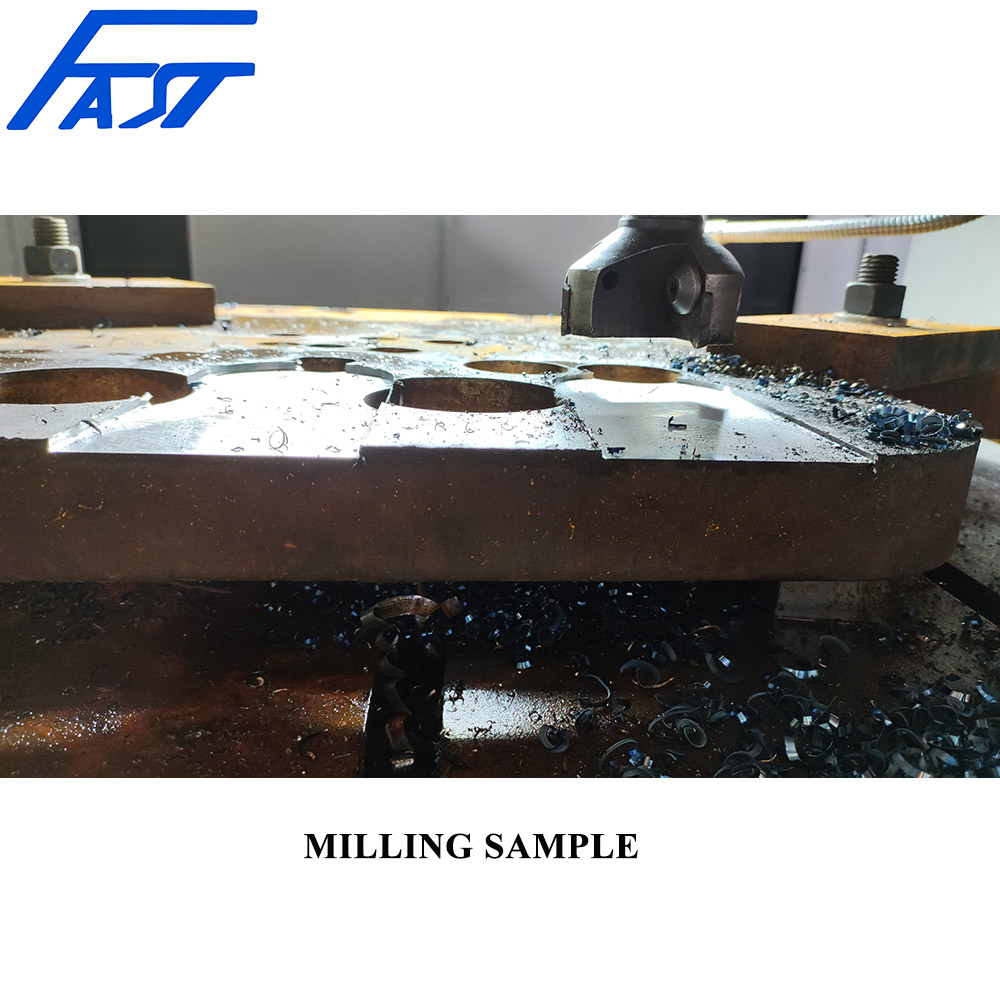

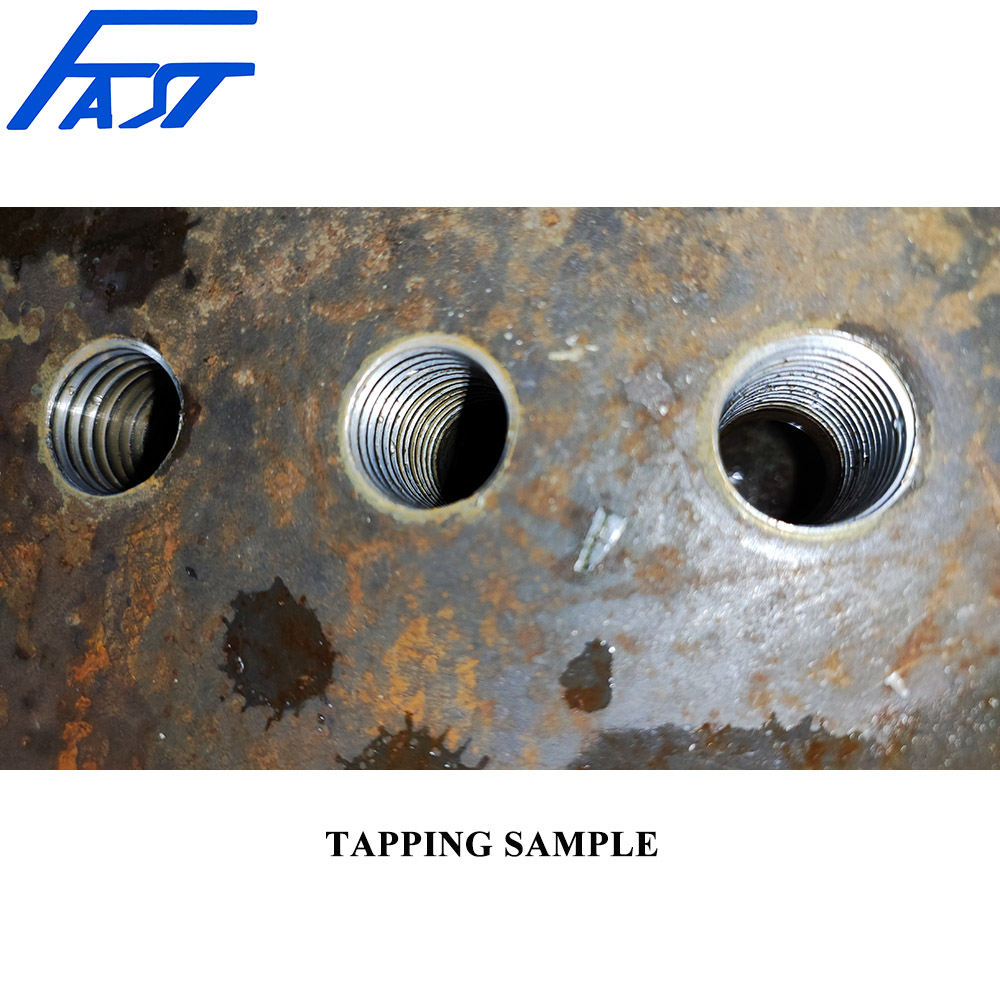

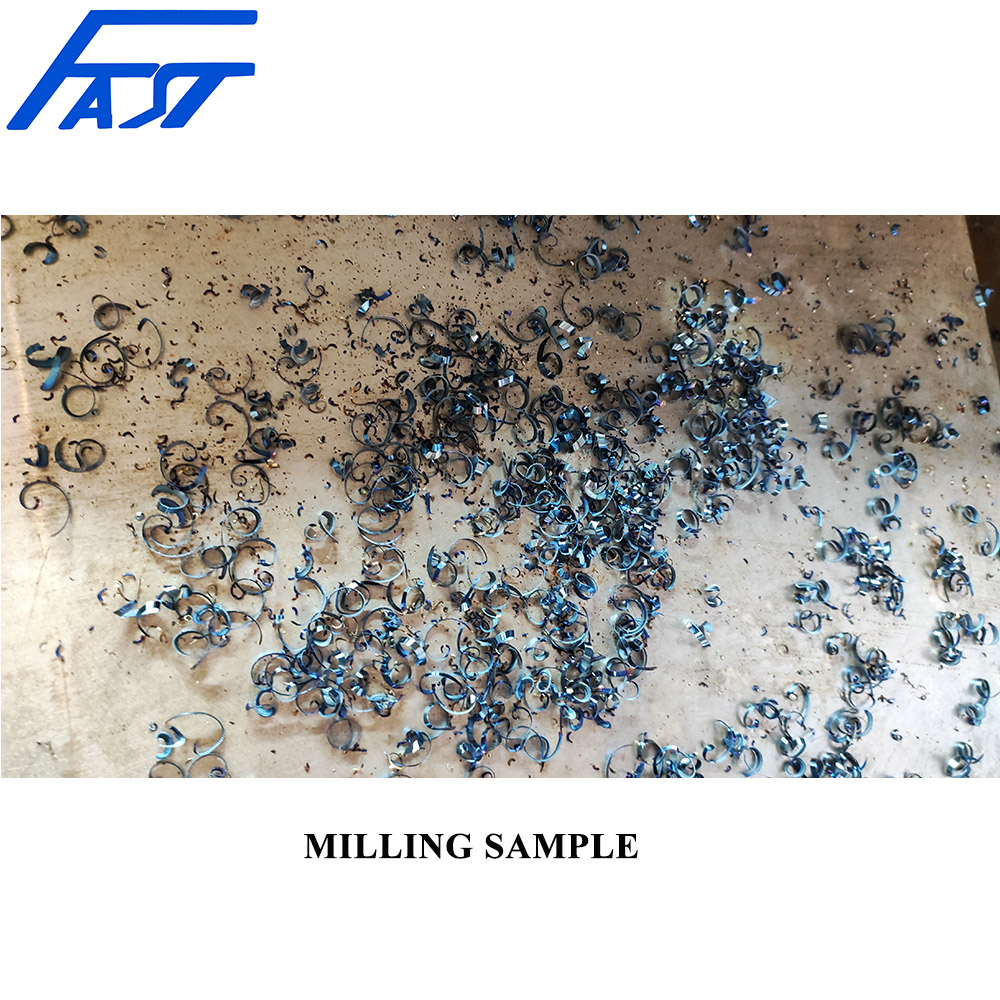

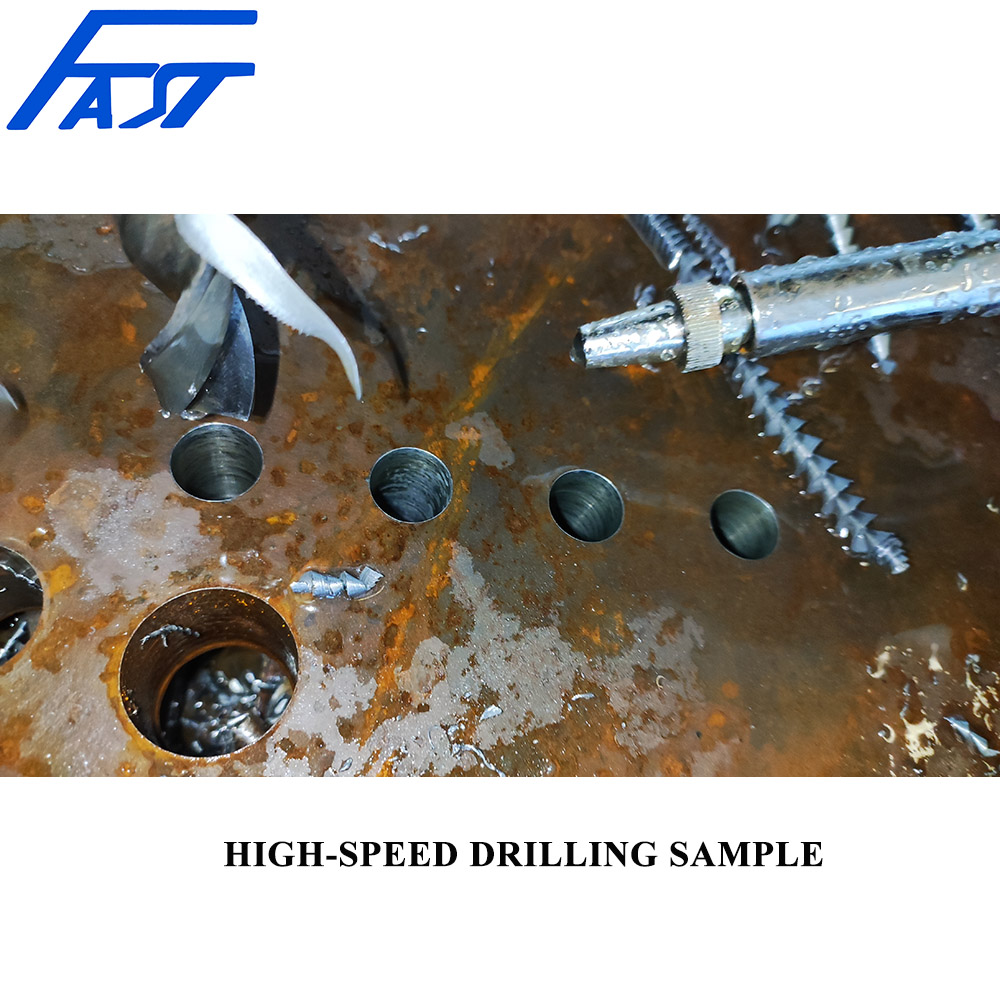

The machine is mainly used for drilling, milling, chamfering and tapping on flanges, tubesheets, and machine bases. Internal cooling high-speed drilling with carbide milling cutters or external cooling drilling with ordinary high-speed steel twist drills, end mills can also be used to mill grooves and special tools are used to mill the expansion grooves of the tube holes of the tubesheet. The machining process of the machine is digitally controlled. The operation is very convenient. It can realize automation, high precision, multi-variety and mass production.

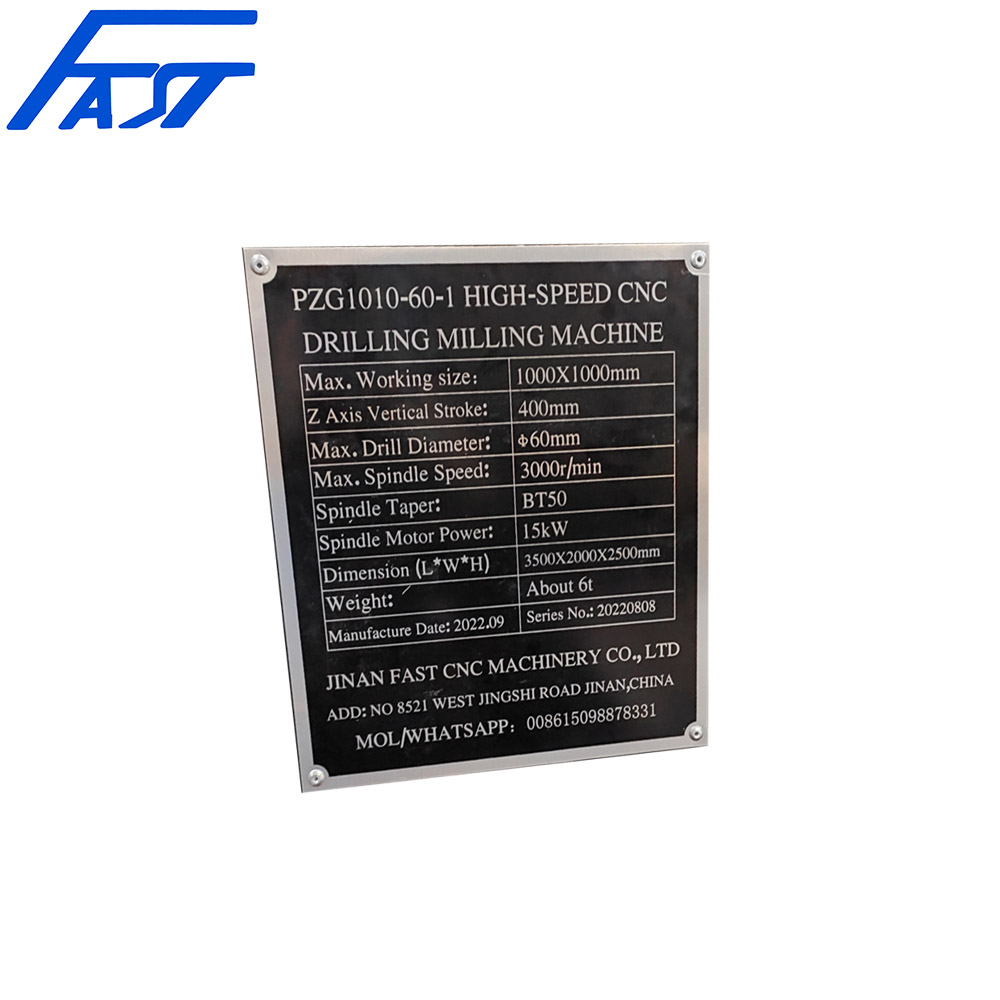

TECHNICAL DATA
Name
Specification
Mode
Gantry type
Table size (L*W)
1300*1100mm
Max. workpiece size (L*W)
1000*1000mm
Distance between the bottom of the spindle to work table
230~630mm
Processing Capability
Max. Drilling Depth
250mm
Max. Drilling Diameter
60mm
Milling Diameter
Milling cutter head diameter 100mm
Drilling Power Head
Type of Power Head
BT50 servo control power head
Quantity
1
Type of Clamp
Butterfly spring pull rod device (air pressure tool)

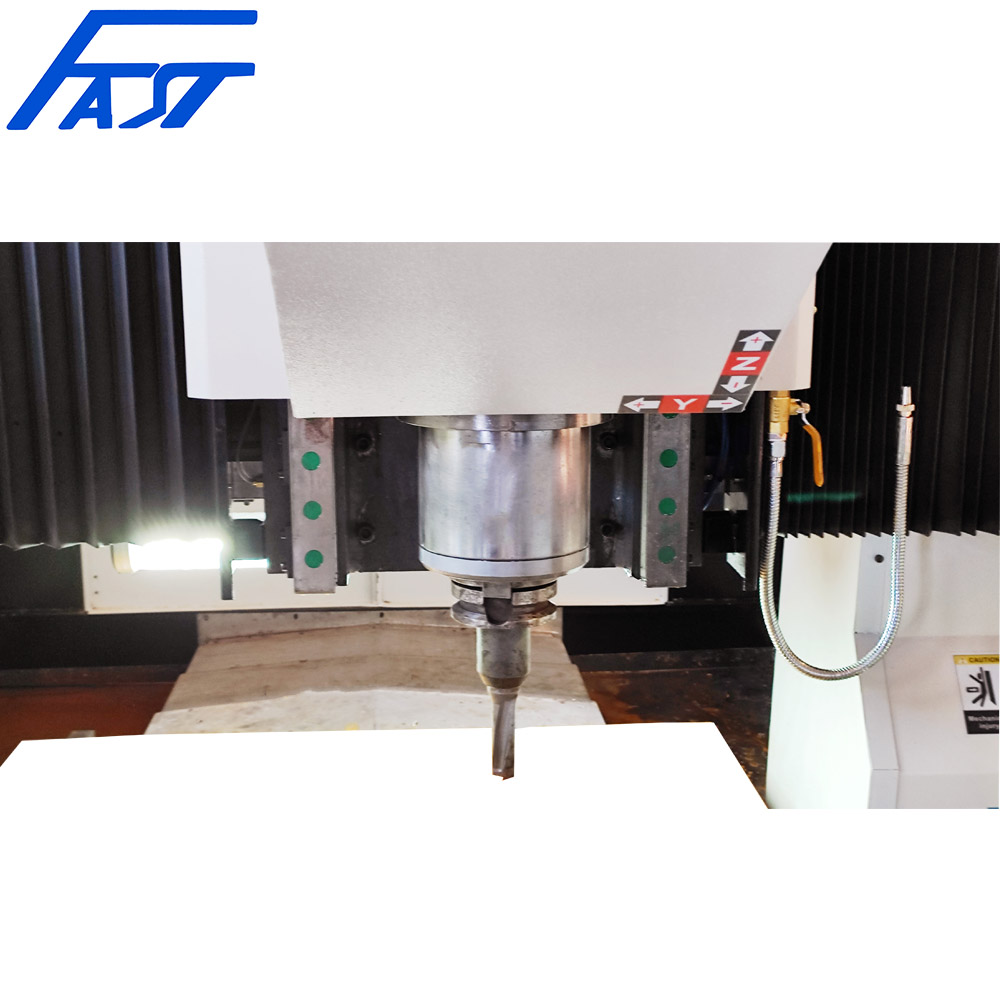

Spindle Technical Data
Spindle Power
15kW
Spindle Rotating Speed
30~3000r/min
Type of Connection mold of spindle
BT50
Longitudinal movement X Axis
Max. Stroke
1000mm
Speed of X axis
0~8000mm/min
Servo motor power of X axis
2.3kW
Transverse movement of Y Axis
Max Stroke
1000mm
Speed of Y axis
0~8000mm/min
Servo motor power of Y axis
2.3kW
Vertical Stroke of Z Axis
Max. Stroke
400mm
Feeding Speed of Z axis
0~5000mm./min
Servo motor power of Z axis
2.3kW (With brake)

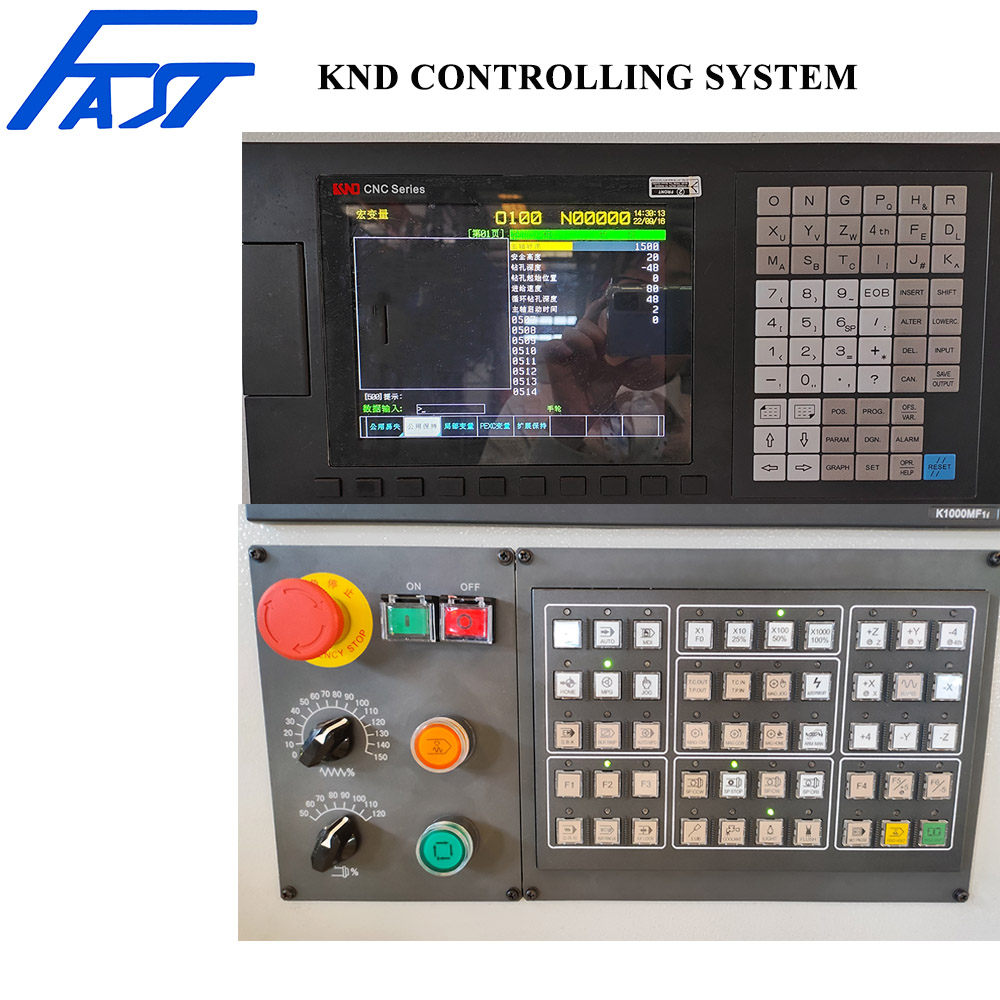

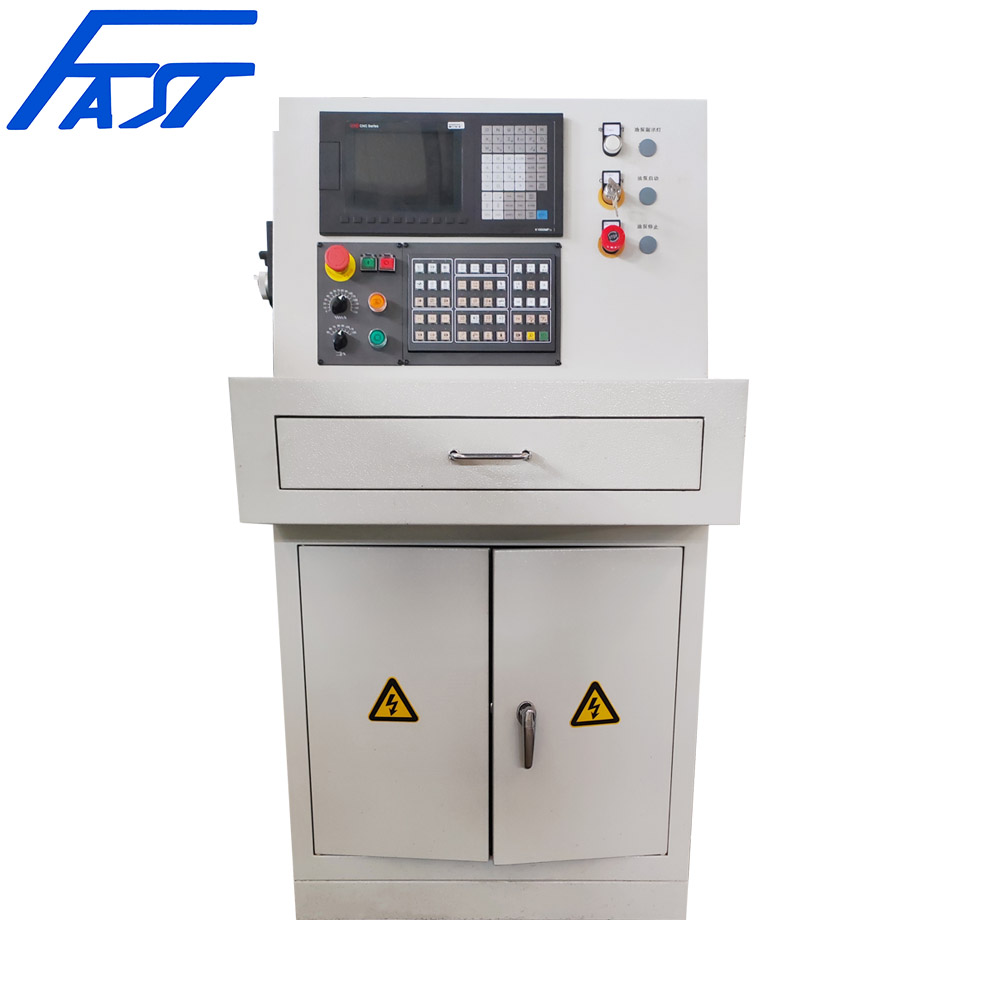

CNC Axes
4 Axes
Machine Accuracy
Positioning Accuracy
<0.05mm
Re-positioning Accuracy
≤0.04mm
Verticality of Spindle to work table
≤0.03mm
Run out of the bottom of spindle and the side spindle
≤0.02 mm
Pneumatic system pressure
0.6MPa

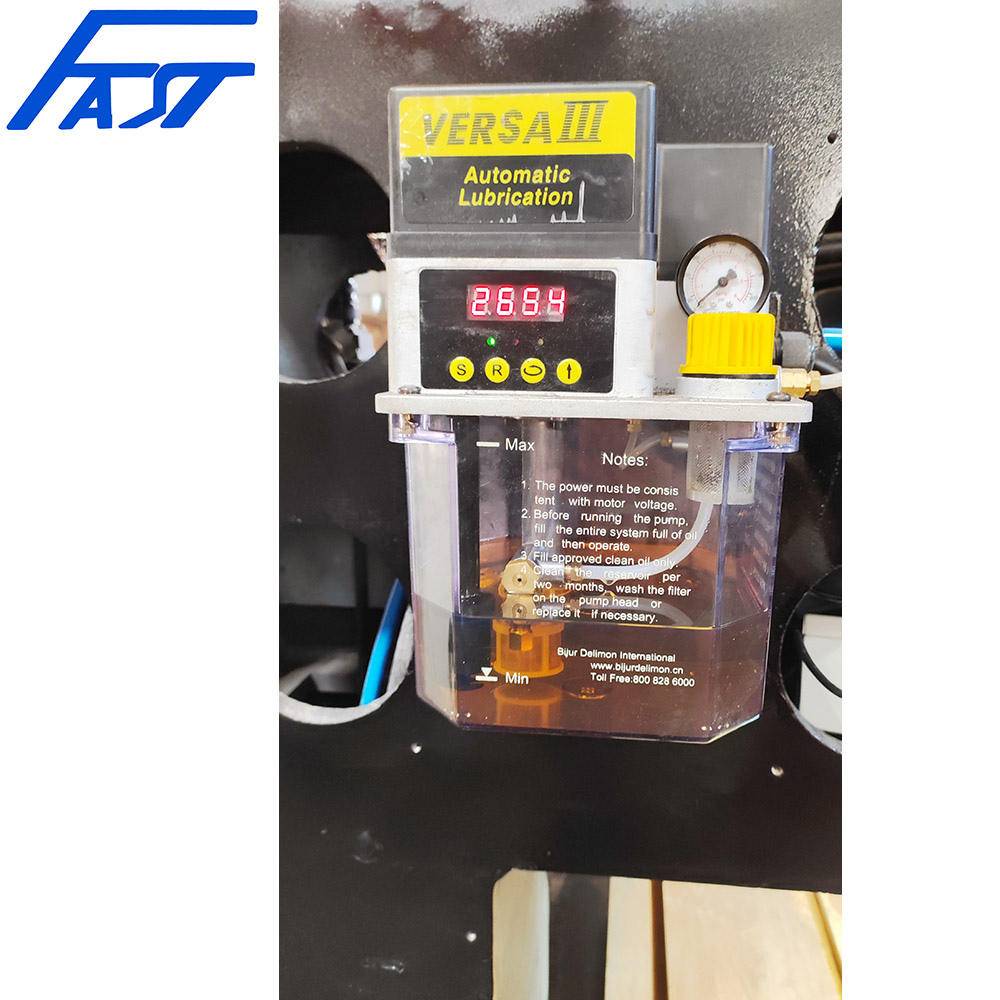

Lubrication system pressure
1.0MPa
Cooling system & filter system
Power
5kW
Flue
50L/min
Accuracy
20μm
Inner Cooling System Max. Pressure
5.0MPa
Out cooling system pressure
0.2MPa
Outline dimension(L*W*H)
3200*2000*2600 mm
Total Power
Appx.30kW
Net Weight
Approx. 5T
★ All of these models can be customized according to customer requirements.
